Aluminum Wire Rod 9.5 mm
Aluminum Wire Rod (9.5 mm)
9.5 mm Aluminum Wire Rod is a high-purity electrical conductor (EC) grade material produced through continuous casting and rolling processes. Typically manufactured from 1350 or 1370 alloys with a purity range of 99.5% to 99.7%+, it serves as the essential raw material for the global power cable and wire drawing industries.
Technical Characteristics
-
Material Grades: Primarily produced in 1370 (EAI 99.7) or 1350 EC-grade aluminum to ensure maximum electrical efficiency.
-
Precision Dimensions: Standard diameter is 9.5 mm, maintained with strict industry-standard tolerances (typically $\pm0.5$ mm).
-
Key Properties: * High Conductivity: Optimized for low-resistance energy transmission.
-
Superior Ductility: Specifically engineered for high-speed wire drawing without breakage.
-
Corrosion Resistance: Natural oxide layer provides longevity in outdoor environments.
-
-

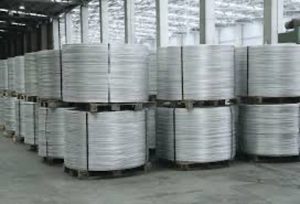

Physical Form: Supplied in large-capacity coils, typically ranging from 1,000 kg to 2,000 kg, with specialized jumbo coils available up to 4,000 kg.
Primary Applications
1. Electrical Infrastructure
The core application is the production of overhead power lines and energy cables. It is the base material for:
-
AAC (All Aluminum Conductor)
-
AAAC (All Aluminum Alloy Conductor)
-
ACSR (Aluminum Conductor Steel Reinforced)
2. Manufacturing & Electronics
-
Used for drawing fine wires for transformer windings and electric motor applications.
-
Serves as the feedstock for specialized magnet wire production.
3. Industrial & Metallurgical
-
Processed into aluminum granules or shot for use as a deoxidizer in steel melting and refining processes.
